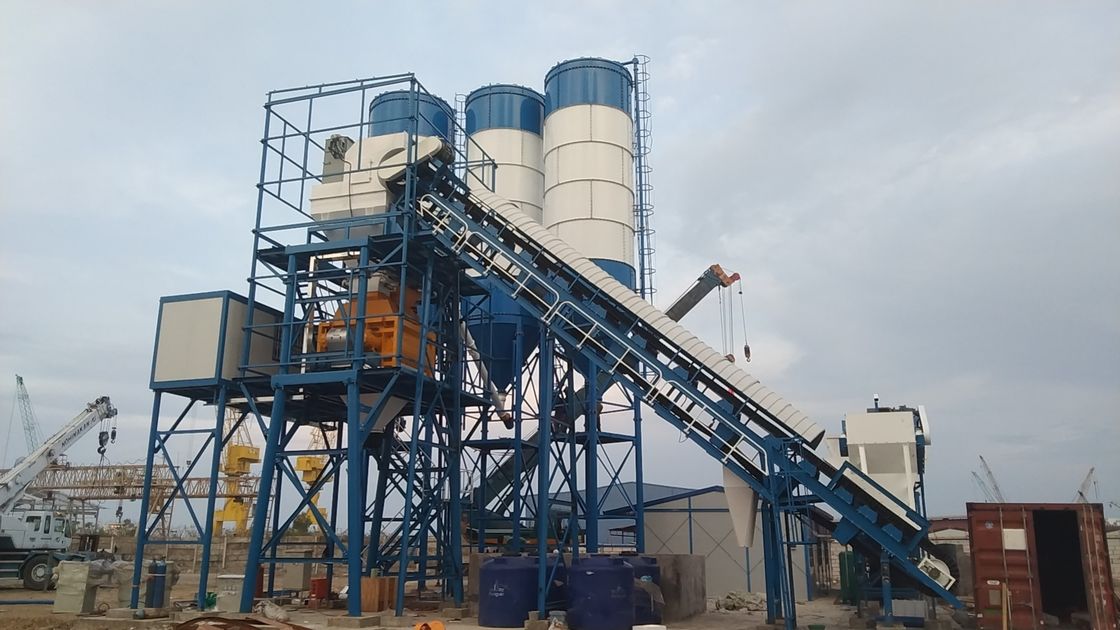

Hzs90 Stationary Full-Automatic Wet Mixing Belt Conveyor Concrete Batching Plant

Name: Hzs90 Stationary Full-Automatic Wet Mixing Belt Conveyor Concrete Batching Plant
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HSZ100
Price: 130,000.00 USD
Availability: InStock

Detail Produk

Tempat asal: Hunan

Nama merek: SUNNY

Nomor model: HSZ100

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: USD 110000-150000/ SET

Kemasan rincian: Wadah

Waktu pengiriman: 25-30 hari

Syarat-syarat pembayaran: L/C, T/T, D/P, Western Union, Moneygram

Menyediakan kemampuan: 20 set/set per bulan

Dapatkan Harga Terbaik

Detail Produk

Deskripsi produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                stationary concrete batching plant, full-automatic wet mixing plant, belt conveyor concrete mixer


Matierial:	semen, batu hancur, pasir dan sebagainya	Aplikasi:	Pekerjaan bangunan, proyek konstruksi, jembatan, dermaga, bandara
Sistem Kontrol:	Kontrol PLC otomatis, benar -benar otomatis	produktivitas:	≤60m3/jam
Pengaduk:	JS2000 Mesin pencampur beton dua poros	Jaminan:	12 bulan
kondisi:	Baru	Layanan purna jual disediakan:	Insinyur tersedia untuk mesin layanan di luar negeri, dukungan online, dukungan teknis video, instal

Matierial:	semen, batu hancur, pasir dan sebagainya
Aplikasi:	Pekerjaan bangunan, proyek konstruksi, jembatan, dermaga, bandara
Sistem Kontrol:	Kontrol PLC otomatis, benar -benar otomatis
produktivitas:	≤60m3/jam
Pengaduk:	JS2000 Mesin pencampur beton dua poros
Jaminan:	12 bulan
kondisi:	Baru
Layanan purna jual disediakan:	Insinyur tersedia untuk mesin layanan di luar negeri, dukungan online, dukungan teknis video, instal

Hzs90 Stationary Full-Automatic Wet Mixing Belt Conveyor Concrete Batching Plant

Product Specifications

Material	cement, crushed stone, sands and so on
Application	Building Works, Construction Projects, bridges, docks, airport
Control system	automatic PLC control, totally automatic
Productivity	≤60m³/h
Mixer	JS2000 Twin-shaft Concrete Mixer
Warranty	12 Months
Condition	New
After-sales service	Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training

Product Description

High Efficiency 90m³/h Stationary Concrete Batching Plant Concrete Mixing Plant

The Bucket Type Concrete Batching Plant mainly consists of five major systems: mixer, material weighing system, material conveying system, material storage system, and control system, as well as other ancillary facilities. It is equipped with the necessary devices for storage, batching, conveying, stirring, control and other functions related to various raw materials required for precast concrete production.

According to the aggregate feeding method, the stationary concrete batching plant can be categorized into two types: Skip hoist type and belt conveyor type. The capacity of the Skip hoist type concrete batching plant can be 25/35/50/75 m³/h, and the capacity of belt conveyor type concrete batching plant can be 60/90/120/180/240 m³/h.

Model	HZS35	HZS50	HZS75	HZS100
Production in Theory (m³/h)	35	50	75	100
Mixer Type	JS750	JS1000	JS1500	JS2000
Mixing Motor Power (KW)	2×15	2×18.5	2×30	2×37
Cycle time(S)	60	60	60	60
Mixer Discharging Volume(L)	750	1000	1500	2000
Maximum Particle Size of Aggregate(mm)	60	60	60	80
Batching Volume(L)	1200	1600	2400	3200
Aggregate Species	2-3	2-4	4	4
Aggregate lifting motor power(kw)	7.5	15	18.5	22
Discharging Height (m)	4	4	4	4
Installed Capacity(KW)	50	70	110	120

Key Features

Combined structure and unitized module design for quick installation and demolition
Increased unloading angle of aggregate bin prevents rain-related unloading difficulties
Cylinder discharge or electric push rod for convenient material discharge
High-quality steel construction for strong structural strength and stability
Twin-shaft forced mixing main machine ensures excellent mixing performance and uniformity
Premium pneumatic and electrical components guarantee reliability and accurate metering
Comprehensive maintenance access with walking platforms and check ladders
Environmental protection features including pulse dust removal and wastewater recycling
